TEST ITEMS FOR PLASTIC PALLET

Samples for various performance tests:
1.Place the samples at a constant temperature environment of 20 ℃ for 48 hr.
2.Bring the samples out and perform the test at a room temperature environment.
 TEST OBJECTIVES
1.To test the bending resistance capability of
    the plastic pallet under a specific load.

2.To test the bending resistance capability of
    the leg portion of the plastic pallet.

3.To test the impact resistance of the plastic
    pallet.

4.The bottom deck bending test: To test the
    bending resistance capability of the bottom
    deck under a specific load.


TEST ITEMS FOR PLASTIC PALLET

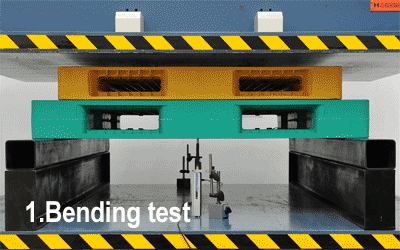

1-1. Bending test
Objective: To test the bending resistance of the plastic pallet under a specific load
Test conditions Control standard
According to CNS8170 test 5.2 specifications on pallet
◎Load: Based on 1.25 times of the maximum load
◎Span: Overall length bending test of pallet
◎Deflection rate of less than 1.5%

◎Residual deflection rate of less than 0.5%

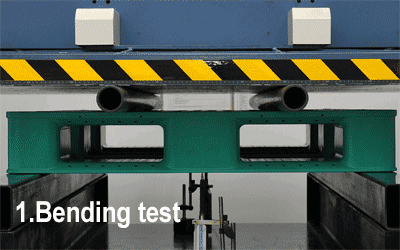

1-2. Bending test
Objective: To test the bending resistance of the plastic pallet’s on rack under a specific load
Test condition Test control value
According to of CNS8170 test 5.2 specifications on pallet
◎Deformation amount: Within 15 mm
◎Residual deformation amount: Within 0.5% of the support span
TOP

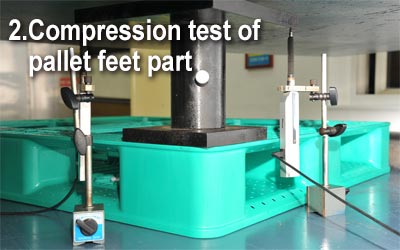

2.Compression test of plallet feet part:
Objective: To test the bending resistance of the plastic pallet’s leg portion
Test condition Control standard
According to CNS 8170 test 5.1 specifications on pallet
◎Load: Based on 1.1 times of the maximum load
◎Deformation rate of less than 4 mm
TOP

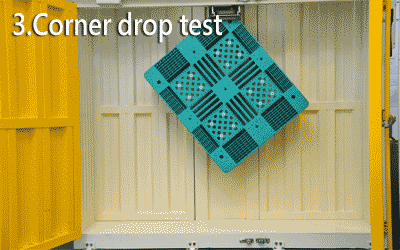

3.Corner drop test:
Objective: To test the impact resistance of the plastic pallet
Test condition Control standard
According to CNS 8170 test 5.4 specifications on pallet
◎Height: Falling on each corner of the pallet three times at a height of 500 mm

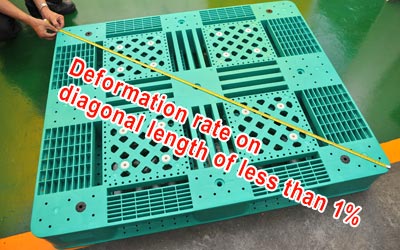

◎No breaking and a deformation rate of less than 1% on the diagonal length

TOP

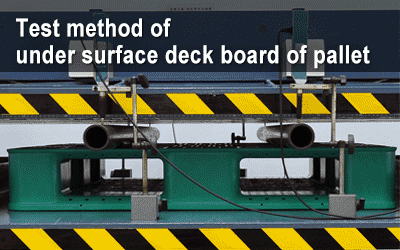

4.Bottom deck bending test:

Objective: To test the bending resistance of the bottom deck under a specific load
Test condition Control standard
According to CNS 8170 test 5.3 specifications on pallet
◎Load: Based on 1.15 times of the maximum load
1.Deflection rate of less than 2.5%(A)
2.Deflection rate of less than 8%(B)
TOP
