Double Sides/2 Way Entry : D Type, DJ Type

	‧D Type

	‧DJ Type

Reinforced rackable structure, especially suitable for automatic warehousing and heavy-duty conditions, only fit for forklift; handlifter or power stacker not allowed.

Direction of Model No. : E represents for PE material, CP represents for Co-polymer PP.

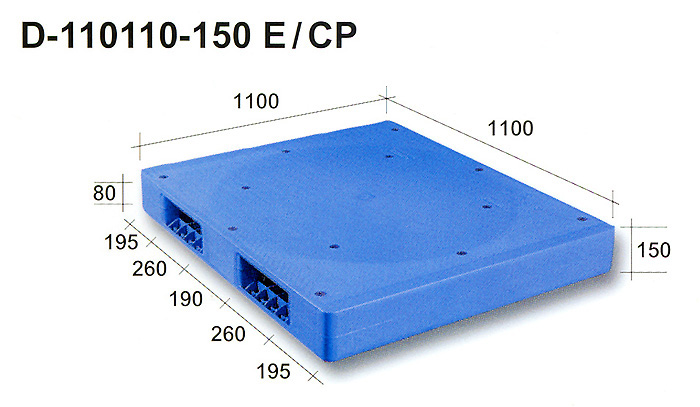

D-110110-150 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting
1100	1100	150	○	○		10.2	3.4	1.7	○

PS :	1.	The data of Loading Capacity is based on the test of the impact PP material, and the racking load stands for the capacity of the pallet length direction.
	2.	The data of Loading Capacity is for reference only and is subject to the actual using condition.
	3.	The data of Size is for reference only and the actual size is subject to the actual pallets.

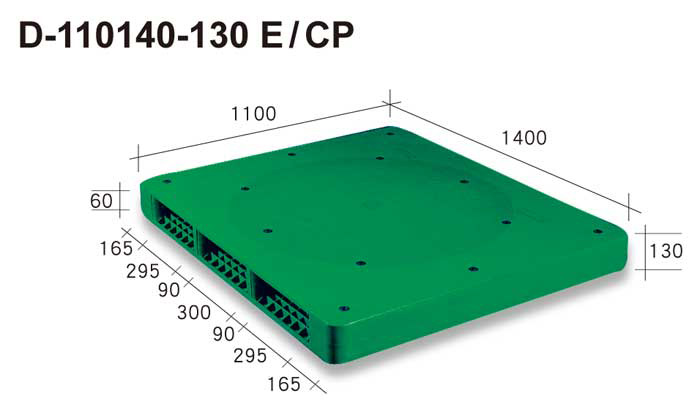

D-110140-130 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting
1100	1400	130	○	○		7.2	2.4	1.2	○

PS : Same as above
	TOP

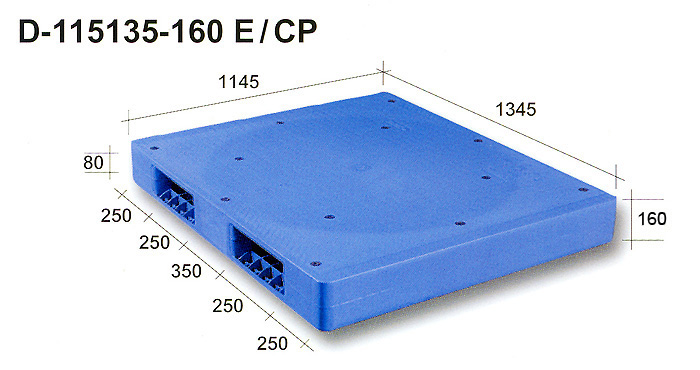

D-115135-160 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting
1145	1345	160	○	○		15	5	2.5	○

PS : Same as above
	TOP

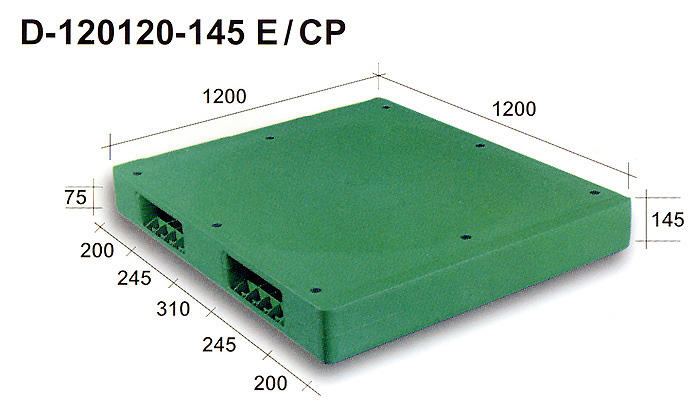

D-120120-145 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting
1200	1200	145	○	○		7.2	2.4	1.2	○

PS : Same as above
	TOP

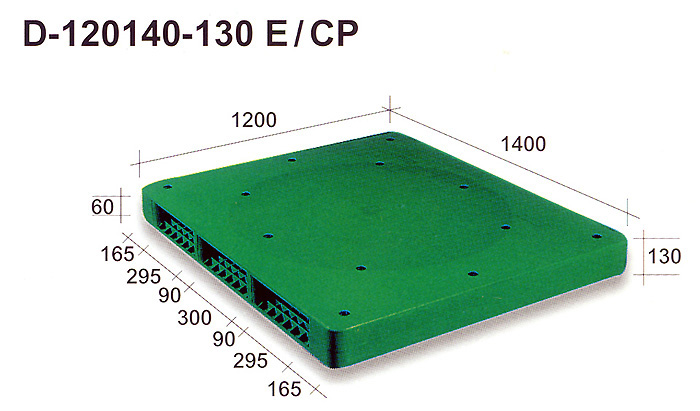

D-120140-130 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting
1200	1400	130	○	○		8.4	2.8	1.4	○

PS : Same as above
	TOP

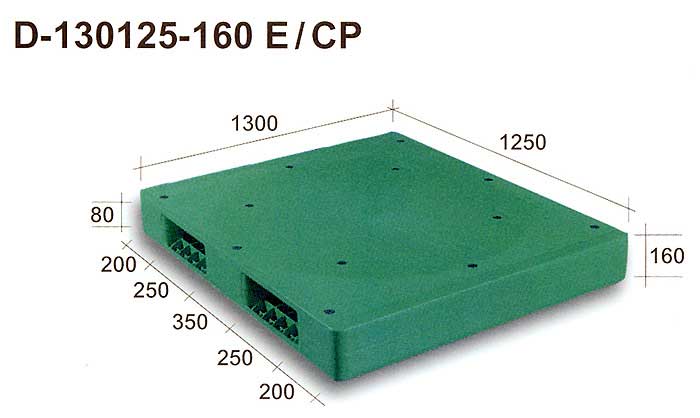

D-130125-160 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting
1300	1250	160	○	○		7.8	2.6	1.3	○

PS : Same as above
	TOP

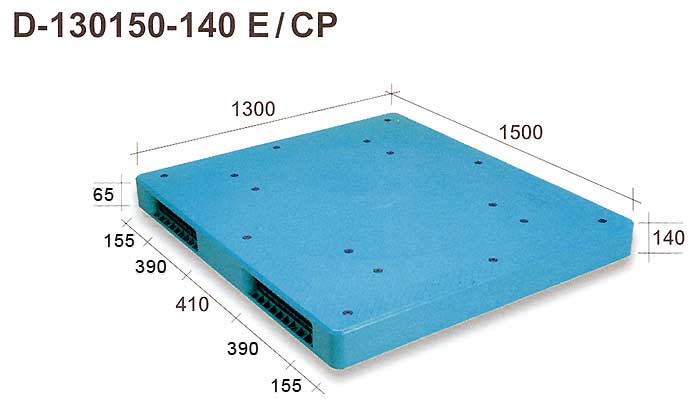

D-130150-140 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting
1300	1500	140	○	○		9	3	1.5	○

PS : Same as above
	TOP

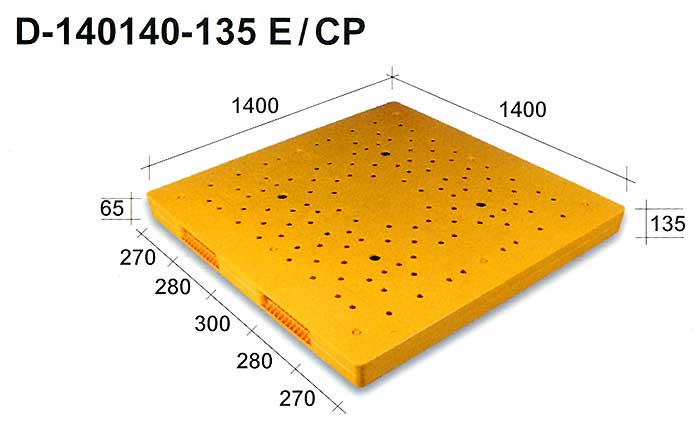

D-140140-135 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting
1400	1400	135	○	○		4.8	1.6	0.8	○

PS : Same as above
	TOP

D-140140-145 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting
1400	1400	145	○	○		10.2	3.4	1.7	○

PS : Same as above
	TOP

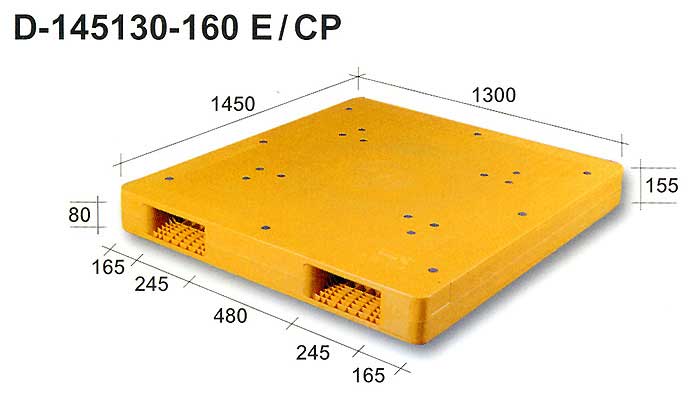

D-145130-160 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting
1450	1300	155	○	○		9.0	3.0	1.5	○

PS : Same as above
	TOP

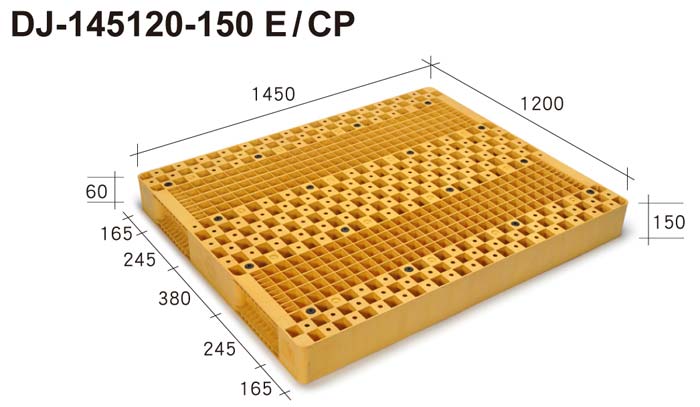

DJ-145120-150 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting
1450	1200	150	○	○		4.8	1.6	0.8	○

PS : Same as above
	TOP
