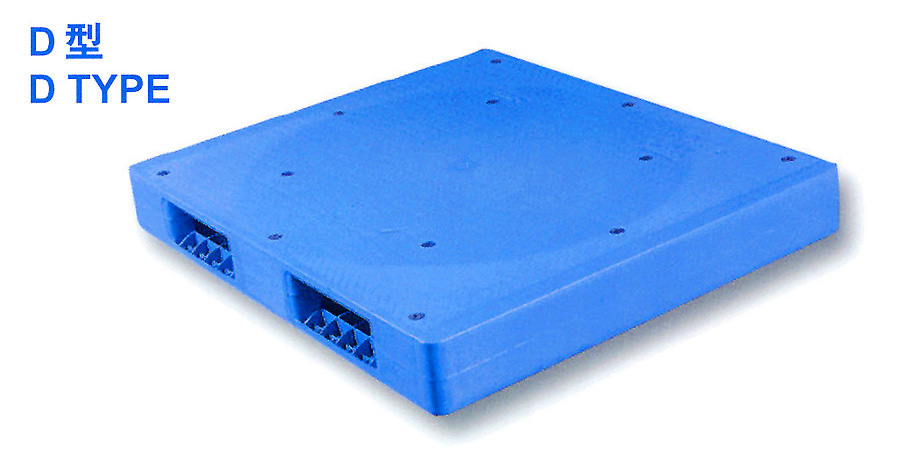

Double Sides/2 Way Entry : D Type, DJ Type

1.
Reinforced rackable structure, especially suitable for automatic warehousing and heavy-duty conditions, only fit for forklift; handlifter or power stacker not allowed.
2.
Direction of Model No. : E represents for PE material, CP represents for Co-polymer PP.





D-110110-150 E/CP
Size(mm)
Loading Side
Entry Gap
Loading Capacity (Ton)
Conveyor Transiting
Length
Width
Height
Double
2 Way
4 Way
Static
Dynamic
Racking
1100
1100
150
6.0
2.0
1.0
PS :
1.
The data of Loading Capacity is based on the test of the impact PP material, and the racking load stands for the capacity of the pallet length direction.

2.
The data of Loading Capacity is for reference only and is subject to the actual using condition.
D-110140-130 E/CP
Size(mm)
Loading Side
Entry Gap
Loading Capacity (Ton)
Conveyor Transiting
Length
Width
Height
Double
2 Way
4 Way
Static
Dynamic
Racking
1100
1400
130
7.2
2.4
1.2
PS : Same as above
D-115135-160 E/CP
Size(mm)
Loading Side
Entry Gap
Loading Capacity (Ton)
Conveyor Transiting
Length
Width
Height
Double
2 Way
4 Way
Static
Dynamic
Racking
1145
1345
155
7.8
2.6
1.3
PS : Same as above
D-120120-145 E/CP
Size(mm)
Loading Side
Entry Gap
Loading Capacity (Ton)
Conveyor Transiting
Length
Width
Height
Double
2 Way
4 Way
Static
Dynamic
Racking
1200
1200
145
7.2
2.4
1.2
PS : Same as above
D-120140-130 E/CP
Size(mm)
Loading Side
Entry Gap
Loading Capacity (Ton)
Conveyor Transiting
Length
Width
Height
Double
2 Way
4 Way
Static
Dynamic
Racking
1200
1400
130
7.2
2.4
1.2
PS : Same as above
D-130125-160 E/CP
Size(mm)
Loading Side
Entry Gap
Loading Capacity (Ton)
Conveyor Transiting
Length
Width
Height
Double
2 Way
4 Way
Static
Dynamic
Racking
1300
1250
160
7.8
2.6
1.3
PS : Same as above
D-130150-140 E/CP
Size(mm)
Loading Side
Entry Gap
Loading Capacity (Ton)
Conveyor Transiting
Length
Width
Height
Double
2 Way
4 Way
Static
Dynamic
Racking
1300
1500
140
7.2
2.4
1.2
PS : Same as above
D-140140-135 E/CP
Size(mm)
Loading Side
Entry Gap
Loading Capacity (Ton)
Conveyor Transiting
Length
Width
Height
Double
2 Way
4 Way
Static
Dynamic
Racking
1400
1400
135
6.0
2.0
1.0
PS : Same as above
D-141141-150 E/CP
Size(mm)
Loading Side
Entry Gap
Loading Capacity (Ton)
Conveyor Transiting
Length
Width
Height
Double
2 Way
4 Way
Static
Dynamic
Racking
1400
1400
145
7.2
2.4
1.2
PS : Same as above
D-145130-160 E/CP
Size(mm)
Loading Side
Entry Gap
Loading Capacity (Ton)
Conveyor Transiting
Length
Width
Height
Double
2 Way
4 Way
Static
Dynamic
Racking
1450
1300
155
9.0
3.0
1.5
PS : Same as above

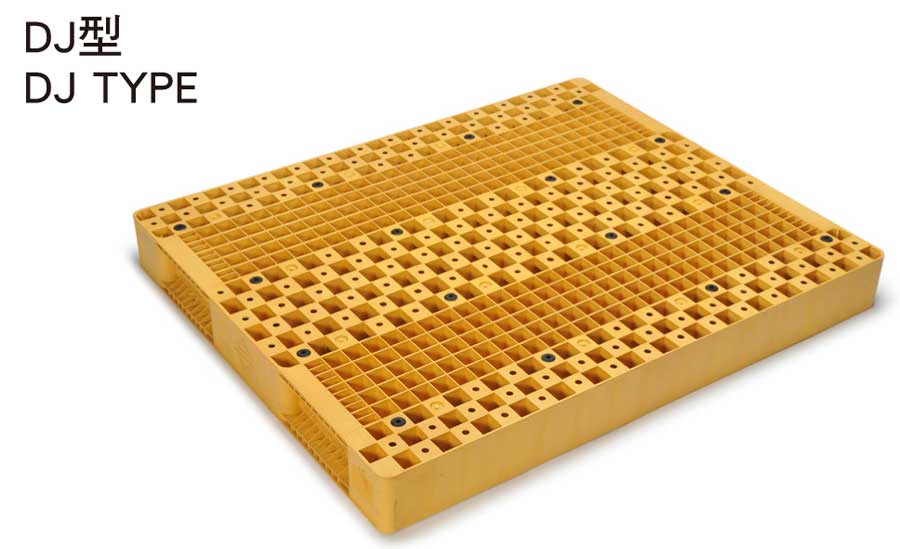

DJ-145120-150 E/CP
Size(mm)
Loading Side
Entry Gap
Loading Capacity (Ton)
Conveyor Transiting
Length
Width
Height
Double
2 Way
4 Way
Static
Dynamic
Racking
1450
1200
150
4.8
1.6
0.8
PS : Same as above
