Application

Single Side/4 Way Entry : SC, SCJ, FC, FCJ, E, EJ, ECJ, FCU Type

	‧SC Type

	‧SCJ Type

Suitable for light-duty automatic ware- housing, in-plant transport, cargo carrying and three chain conveyor conditions, fit for forklift and trailer.

Direction of Model No.: E represents for PE material, CP represents for Co-polymer PP material, P represents for PP material.

	‧FC Type

	‧FCJ Type

Reinforced rackable structure, suitable for mid-duty automatic warehousing, in-plant transport, and cargo carrying conditions, fit for forklift and trailer.

Direction of Model No.: E represents for PE material, P represents for PP material.

	‧E Type ‧EJ Type

	‧ECJ Type

Suitable for in-plant transport, domestic & export cargo carrying, fit for forklift and trailer.

Direction of Model No.: E represents for PE material, CP represents for Co-polymer PP material, P represents for PP material.

	‧FCU Type

Suitable for in-plant transport and domestic cargo carrying applications, fit for forklift and trailer.

Direction of Model No.: E represents for PE material, P represents for PP material.

SC-110110-140 E/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1100	1100	140	○	○	3.6	1.2	0.6	○	○

PS :	1.	The data of Loading Capacity is based on the test of the pallet made of the impact PP material, and the racking load stands for the capacity of the pallet length direction.
	2.	The data of Loading Capacity is for reference only and is subject to the actual using condition.
	3.	The data of Size is for reference only and the actual size is subject to the actual pallets.

SC-120100-155 E/CP

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1200	1000	155	○	○	3.6	1.2	0.8	○	○

PS : Same as above
	TOP

SC-131088-130 E/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1310	880	130	○	○	2.4	0.8	0.4	○	○

PS : Same as above
	TOP

SC-132110-130 E/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1325	1105	125	○	○	3.6	1.2	0.6	○	○

PS : Same as above
	TOP

SC-132110-150 E

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1320	1100	145	○	○	6.0	2.0	1.0	○	○

PS : Same as above
	TOP

SC-138096-155 E/CP/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1380	960	155	○	○	3.0	1.0	0.5	○	○

PS : Same as above
	TOP

SCJ-110110-140 E/CP/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1100	1100	140	○	○	2.25	0.75	0.2	○	○

PS : Same as above
	TOP

SCJ-120100-140 E/CP/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1200	1000	140	○	○	2.25	0.75	0.2	○	○

PS : Same as above
	TOP

SCJ-120100-145 E/CP/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1200	1000	145	○	○	1.5	1.0	0.3	○	○

PS : Same as above
	TOP

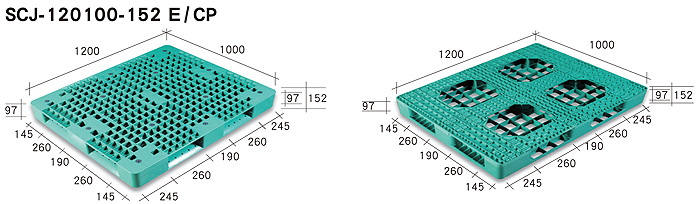

SCJ-120100-152 E/CP

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1200	1000	152	○	○	3.0	1.0	0.5	○	○

PS : Same as above
	TOP

SCJ-120110-155 E/CP

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1200	1000	155	○	○	3.6	1.2	0.6	○	○

PS : Same as above
	TOP

SCJ-120100-160 E/CP

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1200	1000	160	○	○	3.6	1.2	0.6	○	○

PS : Same as above
	TOP

SCJ-132110-130 E/CP/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1325	1105	130	○	○	3.0	1.0	0.5	○	○

PS : Same as above
	TOP

FC-110110-150 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1100	1100	150	○		○	5.4	1.8	0.9	○	○

PS : Same as above
	TOP

FC-115115-150 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1150	1150	150	○		○	4.8	1.6	0.8	○	○

PS : Same as above
	TOP

FC-120100-155 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1200	1000	155	○		○	3.0	1.0	0.6	○	○

PS : Same as above
	TOP

FC-120120-145 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1200	1200	145	○		○	4.8	1.6	0.8	○	○

PS : Same as above
	TOP

FC-127095-160 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1270	950	160	○		○	3.0	1.0	0.4	○	○

PS : Same as above
	TOP

FC-127109-160 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1270	1090	160	○		○	3.0	1.0	0.5	○	○

PS : Same as above
	TOP

FC-130130-150 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1300	1300	150	○		○	6.0	2.0	1.0	○	○

PS : Same as above
	TOP

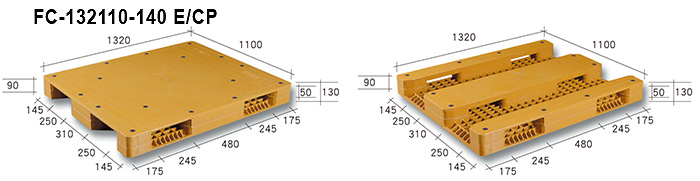

FC-132110-140 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1320	1100	140	○		○	5.0	2.0	0.8	○	○

PS : Same as above
	TOP

FCJ-127105-160 E/CP/P

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1275	1055	165	○		○	3.0	1.0	0.5	○	○

PS : Same as above
	TOP

E-110110-138 E/CP/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1100	1100	138	○	○	3.0	1.0	○	○

PS : Same as above
	TOP

E-110110-140 E/CP/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1100	1100	140	○	○	3.0	1.0	○	○

PS : Same as above
	TOP

E-120100-136 E/CP/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1200	1000	136	○	○	3.0	1.0	○	○

PS : Same as above
	TOP

ECJ-110110-135 E/CP/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1100	1100	135	○	○	1.0	0.5	X	○

PS : Same as above
	TOP

ECJ-120080-135 E/CP/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1200	800	135	○	○	1.0	0.5	X	○

PS : Same as above
	TOP

ECJ-120100-135 E/CP/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1200	1000	135	○	○	1.0	0.5	X	○

PS : Same as above
	TOP

EJ-110110-140 E/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1100	1100	140	○	○	3.0	1.0	○	○

PS : Same as above
	TOP

FCU-100100-085 E/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1000	1000	85	○	○	3.0	1.0	X	○

PS : Same as above
	TOP

FCU-100100-130 E/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1000	1000	130	○	○	3.0	1.0	X	○

PS : Same as above
	TOP

FCU-110110-130 E/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1100	1100	130	○	○	3.0	1.0	X	○

PS : Same as above
	TOP

FCU-120080-130 E/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1200	800	130	○	○	3.0	1.0	X	○

PS : Same as above
	TOP

FCU-120100-130 E/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1200	1000	130	○	○	3.0	1.0	X	○

PS : Same as above
	TOP

FCU-140110-130 E/P

Size(mm)			Loading Side	Entry Gap	Loading Capacity (Ton)		Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	4 Way	Static	Dynamic	Conveyor Transiting	Adaptability Transiting
1400	1100	130	○	○	3.0	1.0	X	○

PS : Same as above
	TOP
