Application

Single Side/2 Way Entry : F Type, SJ Type

	.F Type

Reinforced rackable structure, suitable for mid-duty automatic warehousing, in-plant transport, and cargo carrying conditions, fit for forklift and trailer.

Direction of Model No.: E represents for PE material, CP represents for Co-polymer PP material, P represents for PP material.

	‧SJ Type

Suitable for light-duty automatic ware- housing, in-plant transport, cargo carrying and three chain conveyor conditions, fit for forklift and trailer.

Direction of Model No.: E represents for PE material, CP represents for Co-polymer PP material, P represents for PP material.

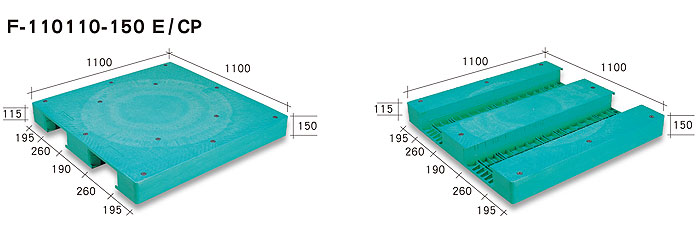

F-110110-150 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1100	1100	150	○	○		5.4	1.8	0.9	○	○

PS :	1.	The data of Loading Capacity is based on the test of the impact PP material, and the racking load stands for the capacity of the pallet length direction.
	2.	The data of Loading Capacity is for reference only and is subject to the actual using condition.
	3.	The data of Size is for reference only and the actual size is subject to the actual pallets.

F-120120-145 E/CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Double	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1200	1200	145	○	○		6.0	2.0	0.9	○	○

PS : Same as above
	TOP

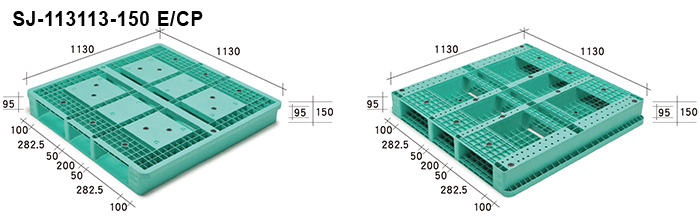

SJ-113113-150 E / CP

Size(mm)			Loading Side	Entry Gap		Loading Capacity (Ton)			Conveyor Transiting	Adaptability Transiting
Length	Width	Height	Single	2 Way	4 Way	Static	Dynamic	Racking	Conveyor Transiting	Adaptability Transiting
1130	1130	150	○	○		4.5	1.5	0.8	○	○

PS : Same as above
	TOP
