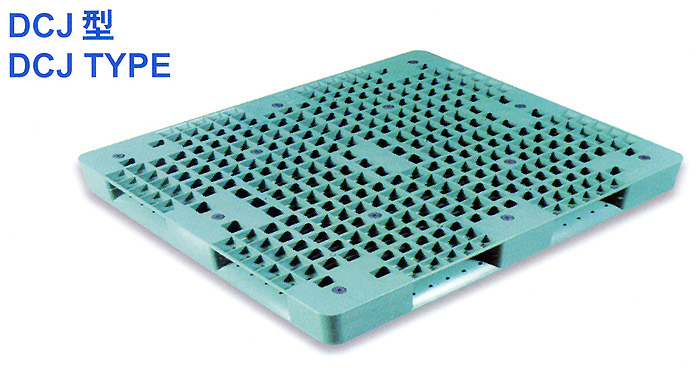

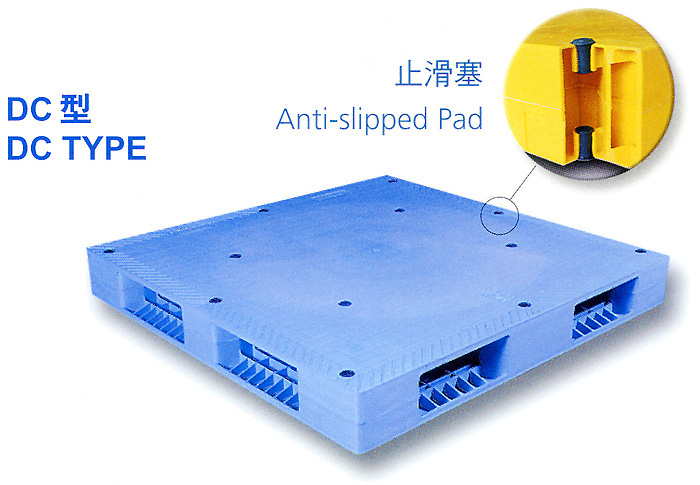

Double Sides/4 Way Entry : DC Type, DCJ Type |
|
| |
|
|
|
| 1. |
Reinforced rackable structure, especially suitable for automatic warehousing and heavy-duty conditions, only fit for forklift; handlifter or power stacker not allowed. |
| 2. |
Direction of Model No.: E represents for PE material, CP represents for Co-polymer PP material, P represents for PP material. |
|
|
|
|
| |
| |
|
| |
|

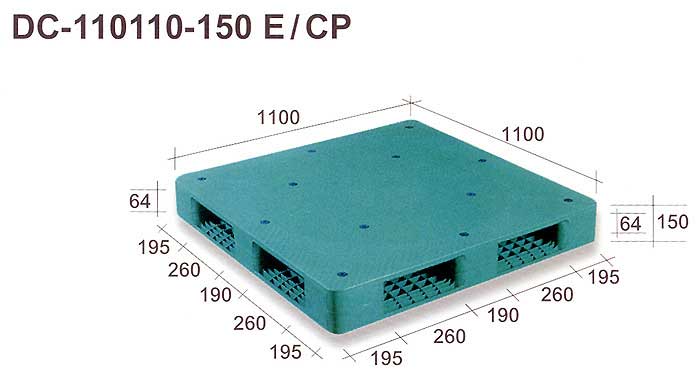

DC-110110-150 E/CP |
 |
|
Size(mm) |
Loading Side |
Entry Gap |
Loading Capacity (Ton) |
Conveyor Transiting |
Length |
Width |
Height |
Double |
2 Way |
4 Way |
Static |
Dynamic |
Racking |
1100 |
1100 |
150 |
○ |
|
○ |
6.0 |
2.0 |
1.0 |
○ |
|
| PS : |
1. |
The data of Loading Capacity is based on the test of the pallet made of the impact PP material, and the racking load stands for the capacity of the pallet length direction. |
| |
2. |
The data of Loading Capacity is for reference only and is subject to the actual using condition, also not served as any commercial certification. |
| |
3. |
The data of Size is for reference only and the actual size is subject to the actual pallets. |
|
|
|
|

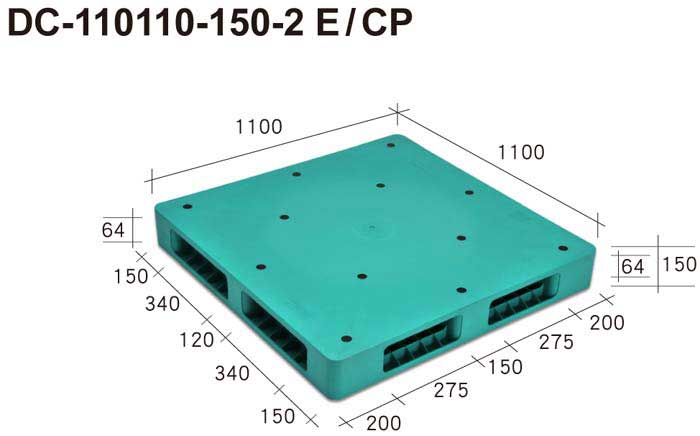

DC-110110-150-2 E/CP |
 |
|
Size(mm) |
Loading Side |
Entry Gap |
Loading Capacity (Ton) |
Conveyor Transiting |
Length |
Width |
Height |
Double |
2 Way |
4 Way |
Static |
Dynamic |
Racking |
1100 |
1100 |
150 |
○ |
|
○ |
9.0 |
3.0 |
1.5 |
○ |
|
|
|
|
|

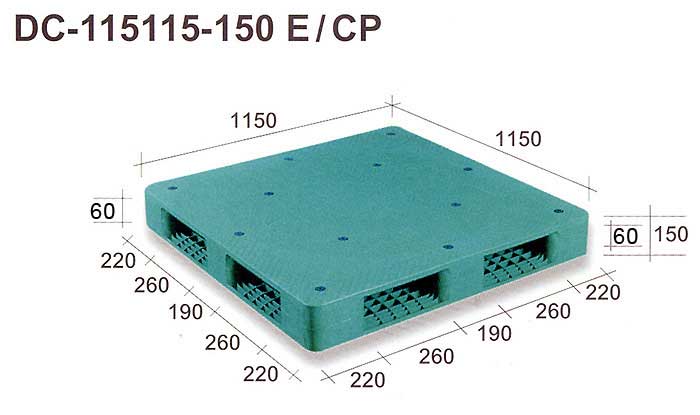

DC-115115-150 E/CP |
 |
|
Size(mm) |
Loading Side |
Entry Gap |
Loading Capacity (Ton) |
Conveyor Transiting |
Length |
Width |
Height |
Double |
2 Way |
4 Way |
Static |
Dynamic |
Racking |
1150 |
1150 |
150 |
○ |
|
○ |
6.0 |
2.0 |
1.0 |
○ |
|
|
|
|
|

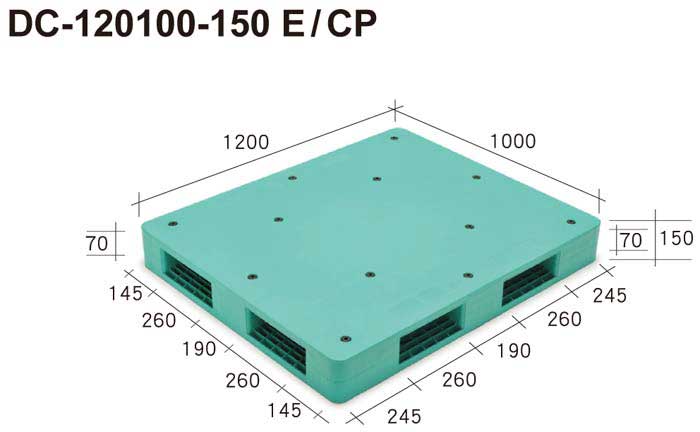

DC-120100-150 E/CP |
 |
|
Size(mm) |
Loading Side |
Entry Gap |
Loading Capacity (Ton) |
Conveyor Transiting |
Length |
Width |
Height |
Double |
2 Way |
4 Way |
Static |
Dynamic |
Racking |
1200 |
1000 |
150 |
○ |
|
○ |
3.6 |
1.2 |
0.6 |
○ |
|
|
|
|
|

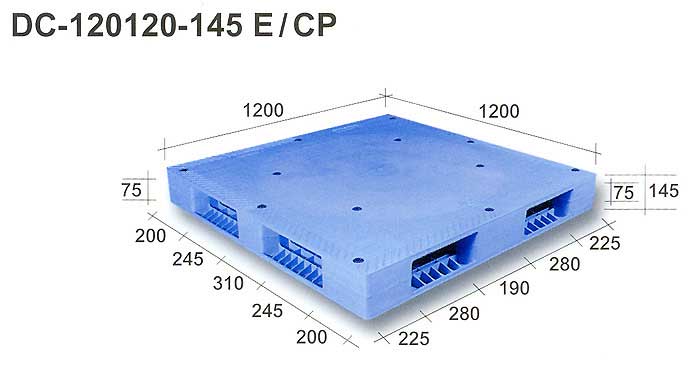

DC-120120-145 E/CP |
 |
|
Size(mm) |
Loading Side |
Entry Gap |
Loading Capacity (Ton) |
Conveyor Transiting |
Length |
Width |
Height |
Double |
2 Way |
4 Way |
Static |
Dynamic |
Racking |
1200 |
1200 |
145 |
○ |
|
○ |
4.8 |
1.6 |
0.8 |
○ |
|
|
|
|
|

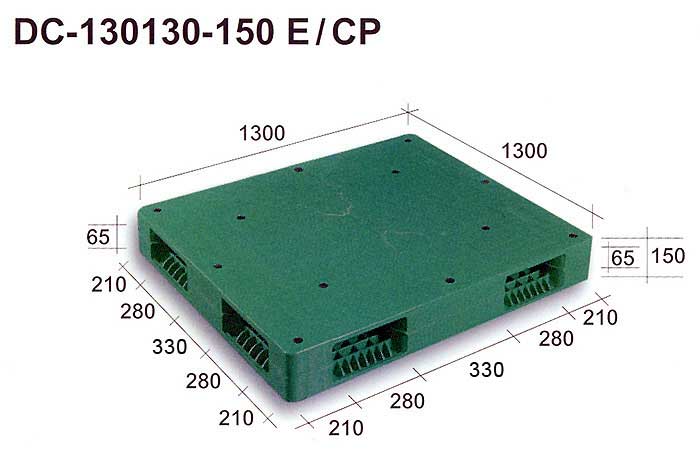

DC-130130-150 E/CP |
 |
|
Size(mm) |
Loading Side |
Entry Gap |
Loading Capacity (Ton) |
Conveyor Transiting |
Length |
Width |
Height |
Double |
2 Way |
4 Way |
Static |
Dynamic |
Racking |
1300 |
1300 |
150 |
○ |
|
○ |
6.0 |
2.0 |
1.0 |
○ |
|
|
|
|
|

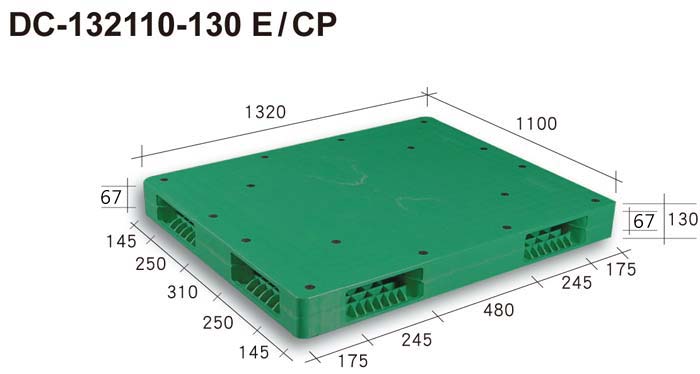

DC-132110-130 E/CP |
 |
|
Size(mm) |
Loading Side |
Entry Gap |
Loading Capacity (Ton) |
Conveyor Transiting |
Length |
Width |
Height |
Double |
2 Way |
4 Way |
Static |
Dynamic |
Racking |
1320 |
1100 |
130 |
○ |
|
○ |
5.4 |
1.8 |
0.9 |
○ |
|
|
|
|
| |
|
| |

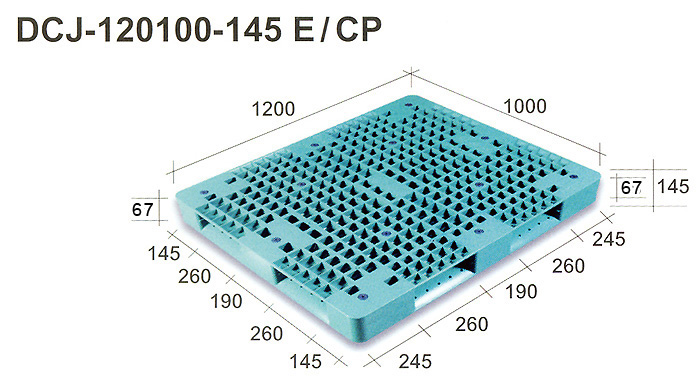

DCJ-120100-145 E/CP |
 |
|
Size(mm) |
Loading Side |
Entry Gap |
Loading Capacity (Ton) |
Conveyor Transiting |
Length |
Width |
Height |
Double |
2 Way |
4 Way |
Static |
Dynamic |
Racking |
1200 |
1000 |
145 |
○ |
|
○ |
2.4 |
0.8 |
0.4 |
○ |
|
|
|
|
|

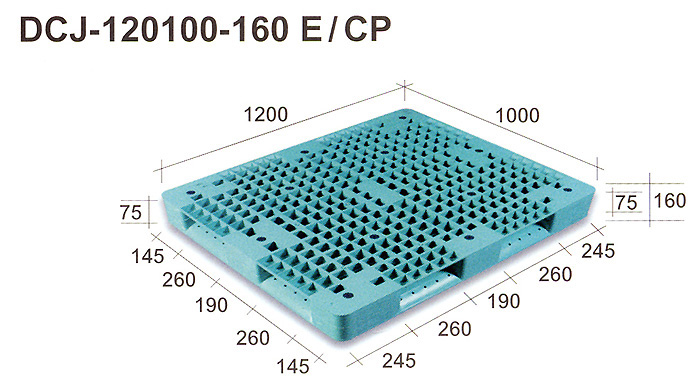

DCJ-120100-160 E/CP |
 |
|
Size(mm) |
Loading Side |
Entry Gap |
Loading Capacity (Ton) |
Conveyor Transiting |
Length |
Width |
Height |
Double |
2 Way |
4 Way |
Static |
Dynamic |
Racking |
1200 |
1000 |
160 |
○ |
|
○ |
3.6 |
1.2 |
0.6 |
○ |
|
|
|
|
| |
| |
